Map dimension account chart¶

Overview¶

This required mapping resources of dimension account chart

Procedures¶

Problems:

On the SSC side, they published datasets included nested of (account label, account class) but it's different between:

(a) On the business category (BASIC, BANK) or related mapping of (NON-FINANCIAL, FINANCIAL)

(b) On the fundamental statement type.

See the example here:

For the targeted website: SSC Information Disclosure Official Website

For the reference term: Go to Term

Goals:

• Centralized the account mapping for each business-category.

• Handle the mapping to fulfil (100% coverage) on fundamental resources

There are seperated 2 procedures with different on (a) Required handlers team (b) Domain, which included:

For the overall process, validation dimension will use following SQL to verify resources:

/*
  Engine: Bigquery
*/
SELECT *
FROM `$TARGETED_DATASET`.`fact_fundamental_report_statement`
WHERE
  1=1
  AND account.id IS NULL

for $TARGETED_DATASET will map related to environment of the lake-prep project (which should be in production mode)

For targeted strategy:

(a) Transition into following order: NON-FINANCIAL ~> FINANCIAL.

(b) The targeted coverage rate: 85-95% for each section

Detail¶

Procedure 1 - Export non-coverage of account chart¶

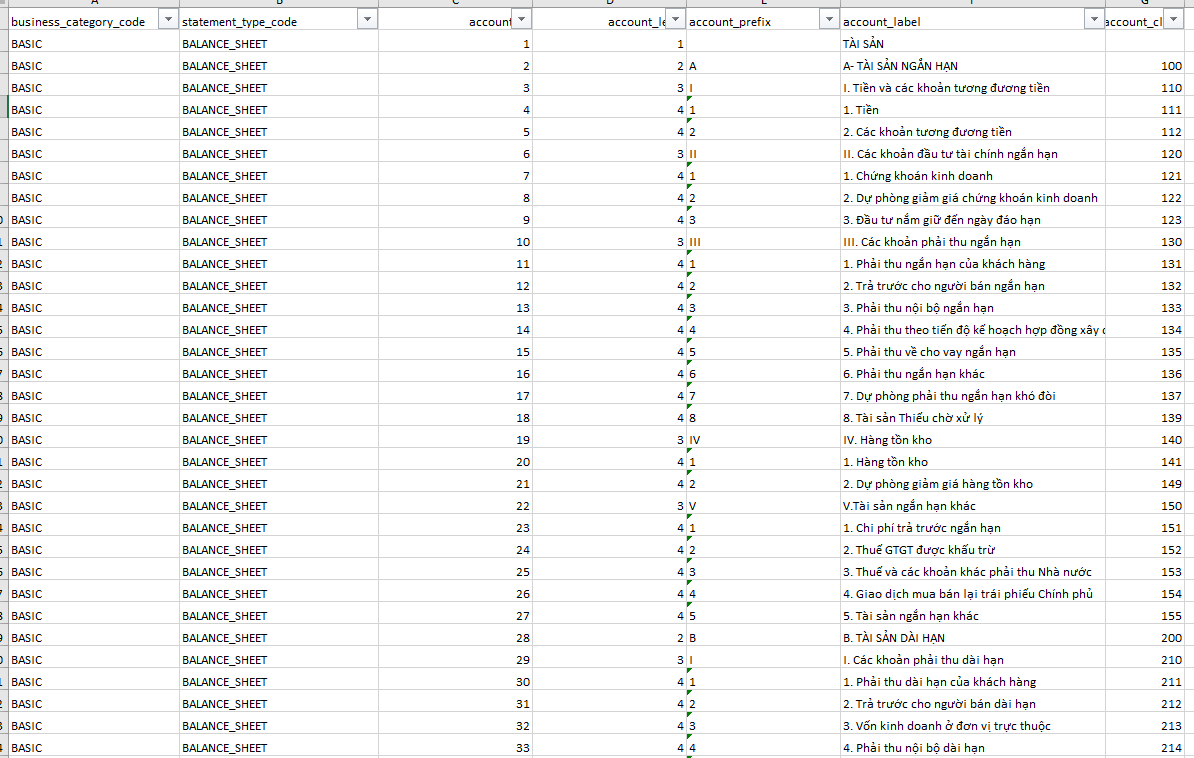

Step 1: Download latest updated of dimension in the account chart

Download latest inno_dim_fundamental_account_chart.xlsx Excel file on master branch

The dimension account chat has following metadata:

For the relationship:

(a) 1 Account ID can have mapping into multiple account labels

(b) 1 Account label related to 1 account class

Step 2: Go to inno-lake-prep and transition into application folder as working directory.

Run the following command in bash then use the compiled SQL statement to fetch datasets required into

dbt compile -s analysis/fundamental/check_account_mapping.sql --target prod

Step 3: Go to the console of BigQuery to load the dataset

Verify the target production and save data into the spreadsheet

Step 4: Mofiy dataset by copy and paste into spreadsheet, which has following metadata

Spreadsheet: [Data] - Fundamental - Snapshot - Non account mapping by date

Shared with: Related expert and data team can read the dataset

The spreadsheet will naming based on YYYMMDD tab which mean the date of exported data.

Procedure 2 - Export non-coverage of account chart¶

Step 1: Go to spreadsheet declared: [Data] - Fundamental - Snapshot - Non account mapping by date

Find the missing mapping of nested term (account_id, account_level, account_prefix) then register the number of related (account_label, account_class)

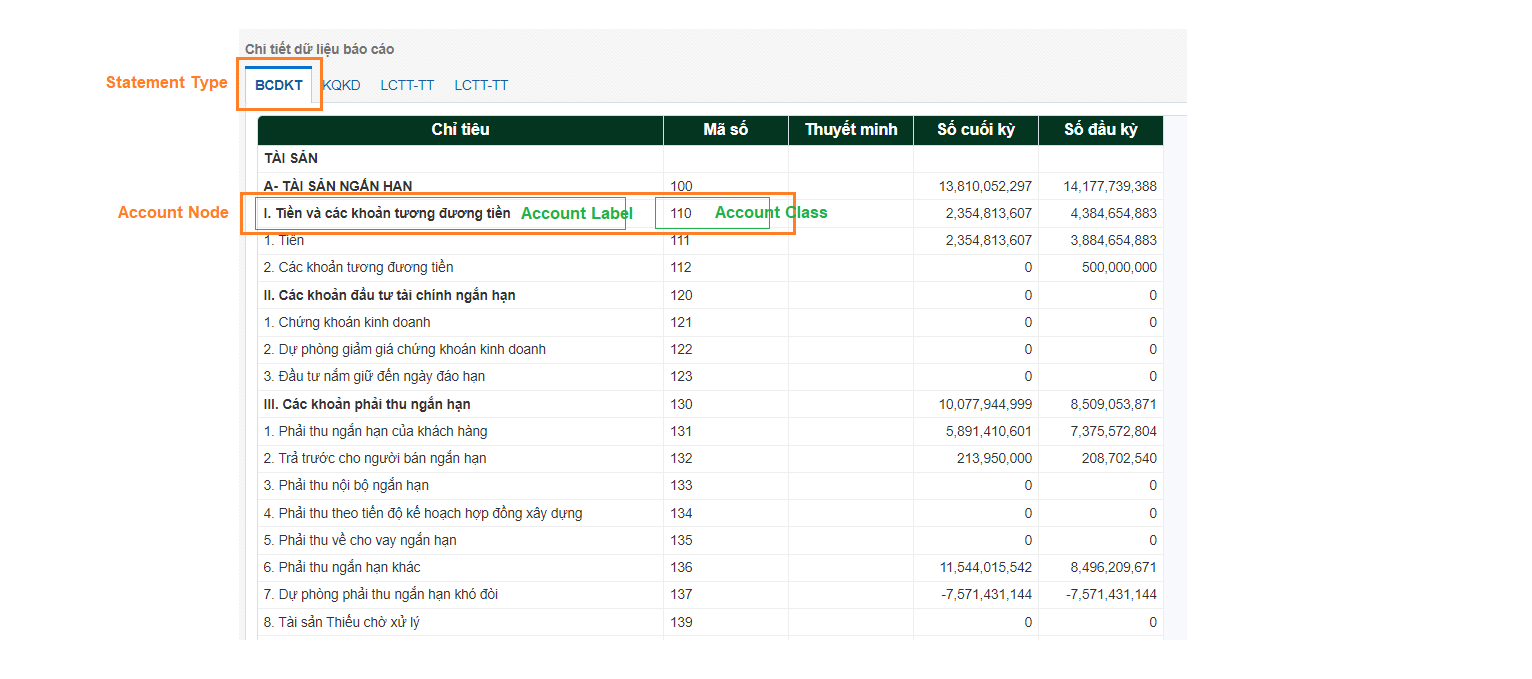

Note: Based on the metadata of financial statement, you can go to SSC information disclosure to see the real datasets has been get.

Step 2: Based on the updated data of dimension then register to that file. This required domain knowledge.

Step 3: Send back the updated for data team to handle the file back

Procedure 3 - Sync with lake and trigger mapping¶

Step 1: Sync update in basement with buffer table then trigger run into dimension table

This will need to sync into 1 source of inno_dim_fundamental_account_chart.xlsx

Step 2: Sync trigger on lake

Appendix¶

Appendix A: Record of Changes¶

Table: Record of changes
