SAD¶

Overview¶

Design related SAD for Financial Fundamental, which is a collection of datasets that represented component of financial statements of public companies.

Metadata:

System Architechture Design (SAD)¶

Logical Concept¶

The logical concept to handle the dataset component. The process trigger to Job with following step:

• Step 1: Fetch from provider the datasets and file (in raw style: excel, pdf)

• Step 2: Push/validate metadata and parse into structured metadata and with annotated information

• Step 3: Store raw file format into bucket

Then will push all element into transformation pipeline and serving output.

flowchart LR

  %% Component
  oschestration[Oschestration]
  provider[Provider]
  job[Job]
  transform_pipeline[Transform Pipeline]
  output[Output :API:, :File:]
  database[Database]
  bucket[Bucket]

  %% Element
  subgraph storage[Storage Engine]
    database
    bucket
  end

  %% Flow
  oschestration -- trigger --> job
  job -- [1] fetch resource (from API) or download raw --> provider
  job -- [2] push metadata, structured output --> database
  job -- [3] store raw file (report, statement) --> bucket
  database --> transform_pipeline
  bucket --> transform_pipeline
  transform_pipeline --> output

Pipeline¶

Based on the logical concept, the pipeline has been introduced into the following pipeline.

flowchart TB

  %% Component
  crontab[CronTab]
  frequency[Frequency]
  provider[Provider]
  mannual[Input Operation]
  gcs_internal[Internal Bucket]
  gcs_cdn[CDN Bucket]
  bigquery[BigQuery]
  mysql[MySQL]
  dbt[DBT]
  spectrum[Spectrum]
  job[Job]
  workflow[Workflow]

  %% Entities
  fs_metadata[Statement Metadata]
  fs_financial_statement[Statement Dataset]
  fs_statement_report[Statement File @pdf @excel]

  %% Element
  subgraph oschestration[Oschestration]
    direction TB
    crontab
    frequency
  end

  subgraph basement[Basement Layer]
    direction TB
    job
    provider
    mannual
  end

  subgraph storage[Storage Engine]
    direction TB
    gcs_internal
    bigquery
    mysql[MySQL]
  end

  subgraph ratelimit[Rate Limit]
    direction TB
    cloud_task[Cloud Task]
  end

  %% Service
  subgraph submarine[Submarine Service]
    direction LR
    application_submarine[ASGI]
  end

  subgraph processor[Processor]
    direction LR
    workflow -- trigger --> application[ASGI Handler]
  end

  %% Group
  subgraph entity[Memory Entity]
    fs_statement_report
    fs_metadata
    fs_financial_statement
  end

  subgraph transformantion[Transformantion]
    dbt
  end

  subgraph consume[Consume]
    spectrum
    gcs_cdn
  end

  %% Trigger
  crontab -- trigger --> job --> provider
  frequency -- trigger --> mannual

  %% Mapping
  provider -- create --> fs_metadata
  provider -- create --> fs_financial_statement
  provider -- download --> fs_statement_report
  mannual -- input --> fs_metadata
  mannual -- input --> fs_financial_statement
  mannual -- upload --> fs_statement_report

  %% Handler
  fs_metadata --> submarine
  fs_financial_statement  --> ratelimit --> processor -- RESTful API --> submarine
  fs_financial_statement --> gcs_internal
  fs_statement_report -- store --> gcs_internal

  processor -- [1] fetch --> gcs_internal
  mysql -- streaming --> bigquery
  application_submarine --> mysql
  processor  -- direct import --> bigquery
  bigquery --> dbt

  gcs_internal -- rsync --> gcs_cdn
  dbt --> spectrum

For the order of the pipeline, below is more configuration specification on the pipeline.

Detail Service¶

The table described the detail component

Oschestration¶

There are 2 parts:

• Part 1: Schedule to fetch data in the background (or in the production level)

• Part 2: Frequency manual input from data officer

Strategy for oschestration:

a) For the first large scan: happened when the first time scanned all the element in the databse

b) For the on basic frequency:

On daily: Fetch day-by-day with the current metadata until all the element is successed

On the missing records: Fetch/Validate the missing dates in the overall dataset to define the missing date and run-back for that date.

Basement Layer¶

For the job, it's constructed in the GitHub::inno-basement that storage raw dataset.

The base origin URL: Information Disclosure at congbothongtin.ssc.gov.vn come directly from provider SSC.

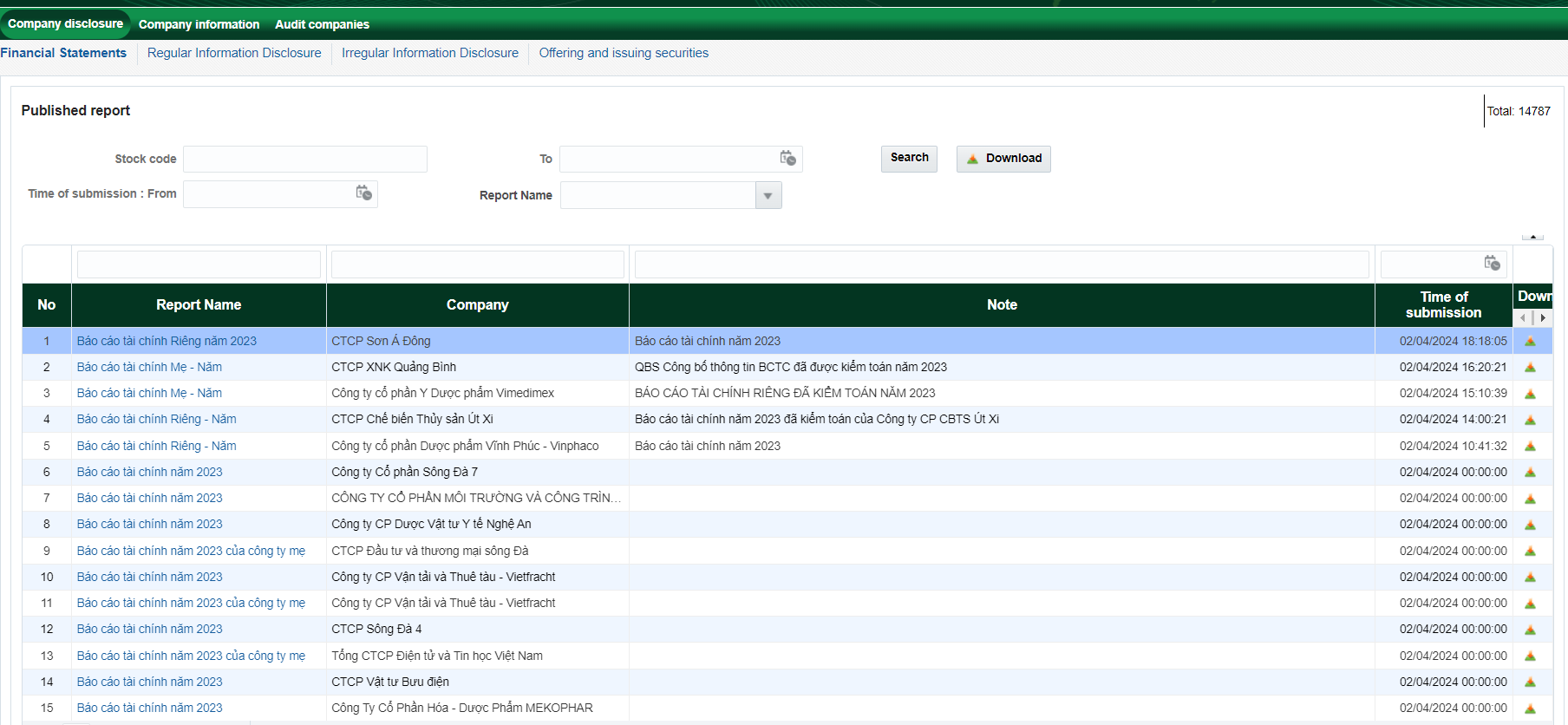

The screenshot of sample:

Public Company	Disclosure Event

Metadata Event	Financial Statement

Component:

• Download disclosure event and assign index

• Handle the metadata component element

• Construct the metadat element

For the storage, using Hive pattern: Google Hive partitioned queries

Submarine¶

• API cho Financial Spectrum: Financial Statement

Processor¶

• Using metadata to put file into GCS with hadooop pattern

• Using sparkEngine Dataprodc to execute component and textures

flowchart LR

  provider[Provider] -- send --> internal_bucket -- push --> eventract -- send message --> workflow -- handle --> baronyx -- extract --> output

For the internal of component

flowchart LR
  a[List of raw statement] --> b[Parse to Statemenet with detail classification] -- decomposite --> c[Node] -- using complier --> d[List of element]

For the extraction

/*
  Concept
  =======

  1 company (EIN) --> Single Period   ---> n report               ---> m statement
                      (Fiscal Y+Q)        |__  k snapshot_uuid        |___ t statement_uuid
                                          |_ k1
                                          |_ k2 (Latest)          ---> Latest statement
                                          |  ...
                                          |_ k(n)

  But at one time, 1 EIN will reference into latest version.
    */

• Bucket CDN for download file [Pipeline to signed URL] [Sieu]

Spectrum¶

• API tren endpoint: /financial-statement/balance-sheet/<ticker>

Entity Relationship Diagram¶

Relationship¶

The ERD related dataset element

flowchart LR

  %% Component
  public_company[Public company] -- reported --> event[Disclousure Event]
  event -- contain --> metadata_origin
  event -- contain --> metadata_records
  event -- contain --> report
  report -- contain --> fa[Fundamental Statement]
  fa -- included --> fa_bs[Statement: Balance Sheet]
  fa -- included --> fa_is[Statement: Income Statement]
  fa -- included --> fa_cf[Statement: Cash Flow]
  fa[Fundamental Component] --> filing[Fundamental Filling]

# 1 report-uuid
# ~
# 3k - 1 snapshot-uuid
# ~
# 2n statement-uuid

Following is the detail schema for the related

erDiagram
  PUBLIC_COMPANY ||--o{ DISCLOSURE_EVENT : allows
  PUBLIC_COMPANY {
      business_licences string "PK, Business Licences"
      company_name text "Company name"
      company_code int "Tax Code of company. Check Lenght(12)"
      trading_platform string "Trading Platform, included HSX, HNX, UPCOM"
      ticker string "The abbr stock traing market"
  }
  METADATA_EVENT ||--o{ DISCLOSURE_EVENT : is
  METADATA_EVENT {
      string driversLicense "The license #"
      string firstName "Only 99 characters are allowed"
      string lastName
      string phone
      int age
  }
  DISCLOSURE_EVENT {
      string carRegistrationNumber
      string driverLicence
  }
  ELEMENT only one to zero or more METADATA_EVENT : makes

Table schema¶

Schema represented for related relationship

Dimension:

The structured dimension dataset for fundamental

Table: inno_dim_fundamental_report_level

Schema:

Element:

Table: inno_dim_fundamental_statement_type

Schema:

Element:

Table: inno_dim_fundamental_business_category

Schema:

Element:

Based on the each business category, there are different account chart related to each financial statement.

Table: inno_dim_fundamental_account_chart

Origin dataset:

Table: ssc_public_company

Table: inno_financial_statement

table_id = "inno_financial_statement" partition_on_field = "period" partition_by = "YEAR"

Code of ['balance sheet', 'income statement', 'cash flow indirect' or 'cash flow direct'] Code of ['YEAR', 'QUARTER']

Mapping: Re-hashed the UUID access report

Based on the account chart, there are mapping on account chart

For normal, usally use CFI

For bank, the bank use CFD

Current, the insurance not has data (BVH), the security company (SSI)

Procedure¶

For the correction of report¶

The report has been recognized correction:

Detect Rule:

• [Rule 1] The regex on node composite.report.descriptive_title with Đính chính component

Example:

After the recognized element:

• Mapping to the related report then matching correction_report_id

• Mapping to the related statement then matching correction_statement_id

• Bind the rule is_correction on metadata section

Reference:

• Term from SEC: SEC data term

• SEC Filling Metadata

Source Reference¶

[1] [Original SSC for published events]: [https://congbothongtin.ssc.gov.vn/faces/NewsSearch]

[2] edgar: An R package for the U.S. SEC EDGAR retrieval and parsing of corporate filings

[3] Financial Statement Data Sets. Reference URL

Appendix¶

Appendix A: Record of Changes¶

Table: Record of changes
